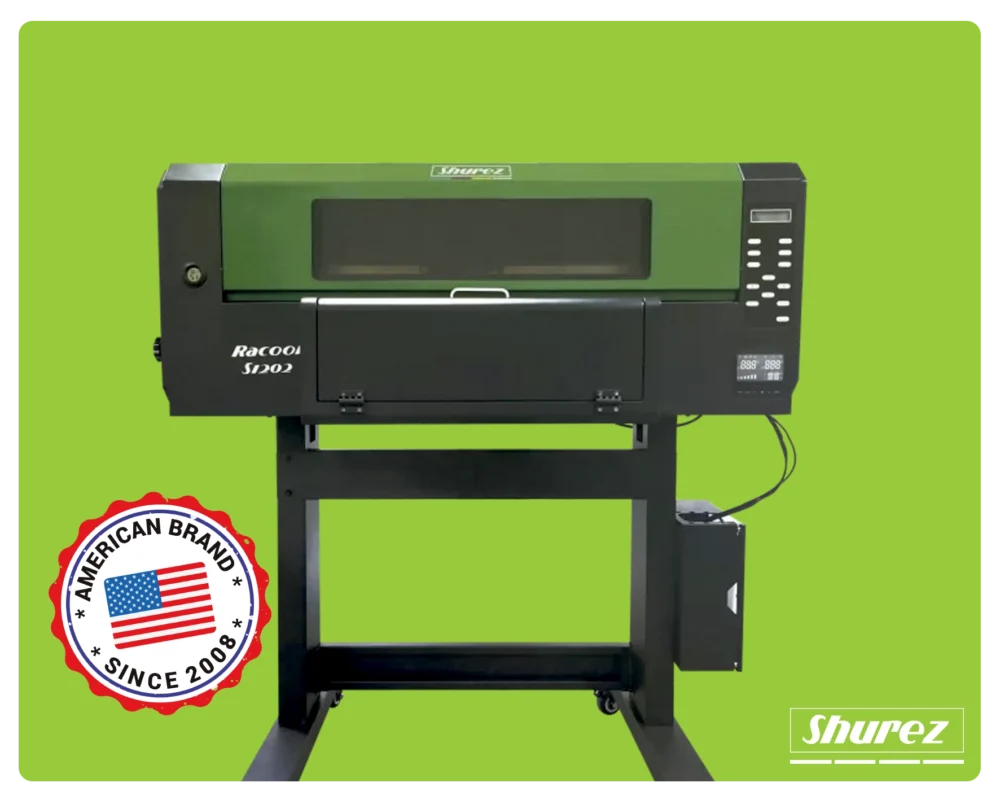

UV Raccoon 1202
Branding machine

The DTF UV 1202 offer high-quality graphics in a wide range of application such as product labels, marking, prototypes, promotional labels, customized asset labels, barcode labels, expanded content labels, security labeling, membrane switch circuits, Qwrty keyboards, and more.


Unique In-Line UV Print Lamination system that provides superior color gamut and bright realistic stunning effects.

Low level Ink Alert System – to avoid production interruption or downtime

Automation – Print load media sensor, lamination and liner release, media rewinder systems

Performance – Print Head jam strike sensor and NIC (network card) included.

Brilliant image quality – UV curable digital inks provide superior quality, vivid images of gloss varnish to the tactile dimensions created with embossing features. UV Varnish printing option applied to specific areas of artwork to create eye-catching contrast (aka spot Varnish). UV White under base print option available.

Versatility – Uneven surface or edge application capabilities, targeting industries like Cosmetics, Beauty, Pharmaceutical, Food & Beverage, Chemical, etc.


Printing Head: Piezoelectric
Number of Printheads: 2
Printing width: 12″ / 30cm
Printing media: A, B film
Ink type: UV DTF
Ink Capacity: 1000ml
Ink Set: CMYK + white + Varnish
Printing speed:
Quality (12 pass): Up to 3.2ft/h – 0.96 ft2 (0.98 m/h – 0.3 m2/h)
Production (8 pass): Up to 4.2ft/h – 1.26 ft2 (1.3 m/h – 0.39 m2/h)
Quality (6 pass): Up to 5.9ft / h – 1.77 ft2 (1.8 m/h – 0.54 m2/h)
*Printer speed depends on the prints quality.
*m/h:linear meter by hour, m2/h: square meters by hour.
*ft/h linear feet by hour, ft2/h: square feet by hour.
Interface: Gigabit Network Port transmission
Software Rip: Flexiprint ESS V22
File compatibility: PDF, JPG, TIFF, etc.
Printer size (LxWxH): 47″x 40″ x 51″
Voltage: 220V
Printer power: 1500 W
Weight: 176 Lb / 80 Kg
