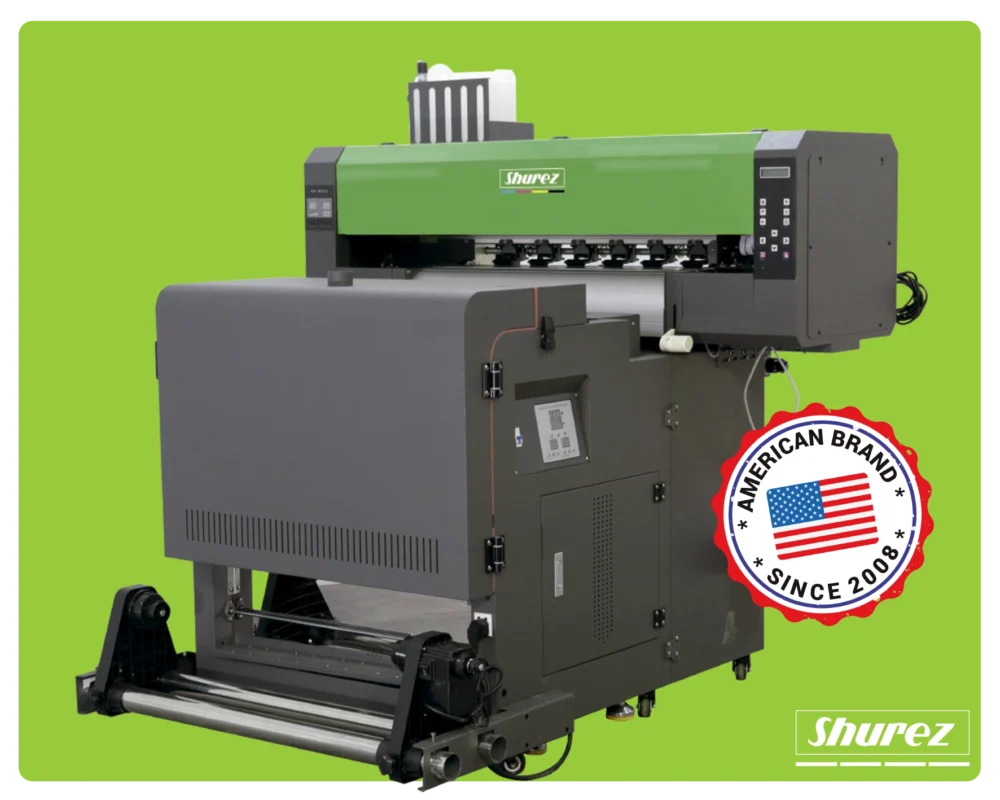

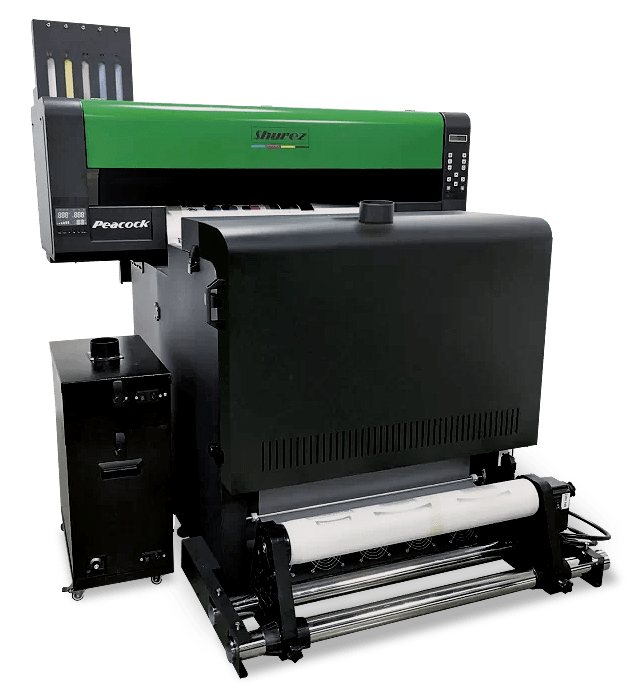

Peacock DTF

– High resolution due to the size of the printhead drop
– Recirculation system: Avoids clogging of white ink ensuring fluidity and normal operation
– Ink activador system: prevents white ink sedimentation
– Polyamide Vibrator system for greater adherence and utility
– Air filter to remove impurities from the heater
– Motor (Take Up) to pick up the printed material
– Continuous ink supply system, ink tanks and cartridges included without chip blocker
– Flexi print ESS V22 with built-in tools for better performance in production environmnet
– Adjustable drying speed depending on print size
– Static elimination for cleanliness and better adherence to fabrics.

Applications

TECHNICAL SPECIFICATIONS

Printing Head: Piezoelectric
Number of Printheads: 3
Printing width: 24″ / 60cm
Printing media: A, B film
Ink type: UV DTF
Ink Capacity: 1000ml
Ink Set: CMYK + white + Varnish


Printing speed:

Quality (8 pass): Up to 20 ft / h – 12ft2 (6.0 m/h – 3.6 m2/h)
Production (6 pass): Up to 30 ft / h – 18ft2 (9 m/h – 5.4 m2/h)
Quality (4 pass): Up to 40 ft / h – 24ft2 (12 m/h – 7.3 m2/h)

*Printer speed depends on the prints quality.
*m/h:linear meter by hour, m2/h: square meters by hour.
*ft/h linear feet by hour, ft2/h: square feet by hour.


Interface: Gb-Ethernet (1000 base-T)
Software Rip: Flexiprint ESS V22
File compatibility: PDF, JPG, TIFF, etc.
Dimensions: 67 in x 34 in x 56 in
Voltage: 220V
Printer power: 1800 W
Weight: 562 Lb / 254 Kg

Mixer

(white ink activator system)
